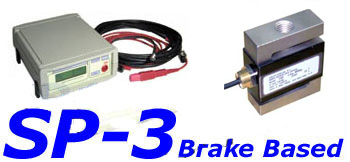

SP-3 DYNAMOMETER ELECTRONIC KIT

SP-3 is a data adquisition hardware and Software for all brake based dynamometers, eddy current, water brake, etc.
Brake torque is measured by a load cell in a free floating eddy current, water brake or any other power absorber.
Price: 1595


SmartPower SP-3 is a package that consists on:

SP-3 data acquisition unit, with 5 input channels:
  • roller speed input
  • engine rpm input
  • thermocouple type K input (upto 1000ºC)
  • general analog input click for calibration info
  • Load Cell input (Internal Load Cell amplifier) calibration info


    And sensors:
  • digital inductive pickup to measure roller rpm
  • capacitive pickup to measure engine rpm
  • Load Cell (220 kg rated)
  • installation cables and SportDyno software

    • How to choose the suitable load cell for your dyno and how calibrate it (click here)



    Applications:

    Engine Dynamometer


    Old water brake or eddy current dynamometers updating: Stuska, Go Power, SuperFlow, DTS, Schenck, Froude, Hofmann, AVL, Borghi & Saveri, Heenan and Froude




    Roller dyno with friction brakes.


    Thrust Load Dynamometer testing  This allow you to operate the engine through its full range, and get maximum horsepower output.

    The computer collects static thrust data from transducers versus engine RPM.


    Last modified OCT/14/06
